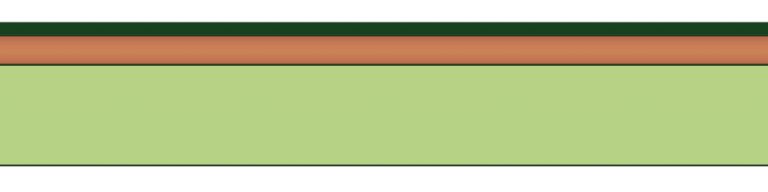

Single Sided PCB With Solder Resist

Single Sided PCBs are the least complicated type of PCB. They are made of a single conductive layer of copper above the substrate.
The electronic components are then soldered or mounted on to one side of the board and the etched circuit can be seen on the other side of the board. This type of PCB has been around for many years and is still the most widely used compared to double sided boards and multilayer boards, if considered by volume alone. Single layer boards are the most cost-effective platform in the industry because they are easily designed and quickly manufactured. In PCB manufacturing, a single sided PCB is made using one layer of insulating dielectric, laminated with copper. Soldermask is usually applied on top of the copper to insulate from the outside world.

Fineline Global produces prototype, mid and high volume single sided PCBs, with a copper thickness ranging from 1 to 20 ounces. Operating temperatures range from 130 C to 230 C, depending on base material type. Single sided boards are available with many surface finishes including Organic Surface Protectant (OSP), Immersion Silver, Immersion Tin, Electroless Nickel Immersion Gold (ENIG) and either leaded or lead-free Hot Air Solder Level (HASL).

This is one example. Every application is different so please contact our experts to discuss your requirements, in full.
